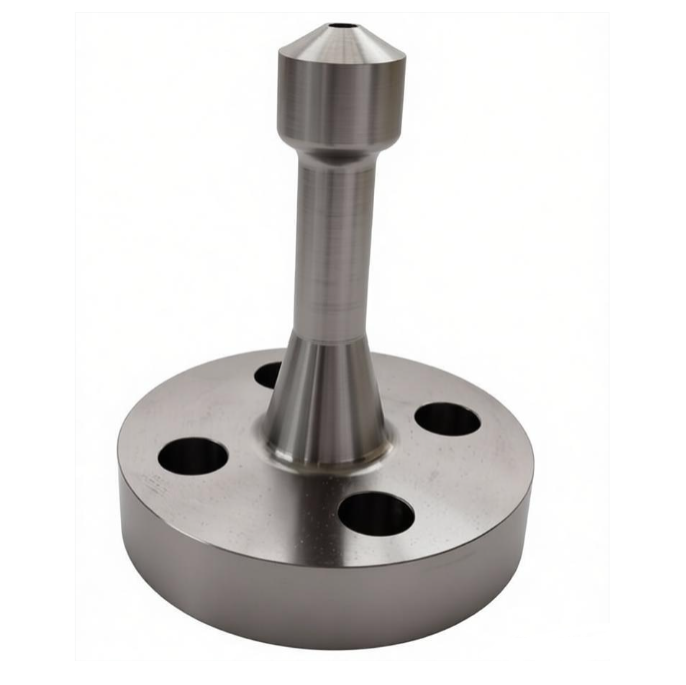

WLDFLG, LF2-1, RJ, CL900, XXS, 16x2in, SR, 9000
Key Specifications / Features
Model No.: HX-WELDOFLANGE Hits: 3
Flanged outlet pipe branch fittings
Mat: LOW TEMPERATURE CARBON STEEL
Mat. spec: ASTM A350 GRADE LF2 CLASS 1
Design spec, flange(s): ASME B16.5
Facing, flange: RING TYPE JOINT
Service: SOUR | NACE MR 01-75 / ISO 15156
Schedule number, branch: S-XXS
Schedule number, run pipe: S-140
Pressure designation: CL 900
Size range, run pipe: 400 mm | Size, branch: 50 mm
Length: 165 mm | Type: WELDOFLANGE
Pressure designation, pipe: 9000 psi
Request a quote
Mat: LOW TEMPERATURE CARBON STEEL
Mat. spec: ASTM A350 GRADE LF2 CLASS 1
Design spec, flange(s): ASME B16.5
Facing, flange: RING TYPE JOINT
Service: SOUR | NACE MR 01-75 / ISO 15156
Schedule number, branch: S-XXS
Schedule number, run pipe: S-140
Pressure designation: CL 900
Size range, run pipe: 400 mm | Size, branch: 50 mm
Length: 165 mm | Type: WELDOFLANGE
Pressure designation, pipe: 9000 psi
Tags
Detail Information
Product Type: Weldolet
Manufacture Method: forging
Size: 1/2”-56”(DN15-DN1400) * SCH10-SCH XXS
Connecting type: BW,SW,NPT,BSPT
Threads type: NPT,FNPT,MNPT, BSPT
Standard: ASME B16.11,B16.25,MSS SP.75,SP9
Material: ASTM A105 ASTM A182
Surface treatment: Oiled , Galvanized
Marking: As per standard & customer's requirements
Packing: Plywood box for small size, and plywood pallet for big size
