Flanges
Flanges
Products List
1-12 of 182 results
HX-FLANGE
Type: Socket Welding
Standard: ASME B16.5
Material: A105. A350 LF2, CL1
Manufacturing Method: Forged
Pressure: Class600
Surface: Oiled , Painted

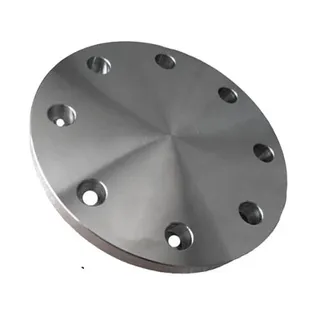

HX-BLIND
Type: Blind
Standard: ASME B16.5
Material: ASTM A105
Manufacturing Method: Forged
Pressure: Class150
Surface: Oiled , Painted
Standard: ASME B16.5
Material: ASTM A105
Manufacturing Method: Forged
Pressure: Class150
Surface: Oiled , Painted
HX-WN FLANGE
Type：Weld Neck
Size: DN200 CL150
Material: ASTM A105
Standard: ASME B16.5
NACE MR-0175/ISO 15156
Size: DN200 CL150
Material: ASTM A105
Standard: ASME B16.5
NACE MR-0175/ISO 15156
HX-SPCT BLIND
Type: Spectacle Blind
Pressure : CL150-CL2500
Material: ASTM A 515 70
Standard: ASME B16.48
Pressure : CL150-CL2500
Material: ASTM A 515 70
Standard: ASME B16.48
HX-WN FLANGE
TYPE : WELD NECK
NOMINAL SIZE : 600 MM (24 IN)
THICKNESS : 26.97 MM
MATERIAL : CARBON STEEL
MATERIAL STANDARD : ASTM A694 GRADE F65
FLANGE FACE : RAISED
PIPE SCHEDULE : REFER WALL THICKNESS
PRESSURE CLASS : ANSI CLASS 1500
DESIGN STANDARD : ANSI B16.5
NOMINAL SIZE : 600 MM (24 IN)
THICKNESS : 26.97 MM
MATERIAL : CARBON STEEL
MATERIAL STANDARD : ASTM A694 GRADE F65
FLANGE FACE : RAISED
PIPE SCHEDULE : REFER WALL THICKNESS
PRESSURE CLASS : ANSI CLASS 1500
DESIGN STANDARD : ANSI B16.5
HX-SPCT BLIND
BLND,LF2,RF,CL150,14in,SR,33.4mm
Spectacle line blind,
Mat LOW TEMPERATURE CARBON STEEL
Mat, spec ASTM A350 GRADE LF2
Design spec, flange(s) ASME B16.5
Finish, flange facing RA: 125 TO 250 μin
Service SOUR
Service requirement NACE MR 01-75
Pressure designation CL 150
Thickness 33.4 mm
Size 350 mm
Facing, flange RAISED FACE
Spectacle line blind,
Mat LOW TEMPERATURE CARBON STEEL
Mat, spec ASTM A350 GRADE LF2
Design spec, flange(s) ASME B16.5
Finish, flange facing RA: 125 TO 250 μin
Service SOUR
Service requirement NACE MR 01-75
Pressure designation CL 150
Thickness 33.4 mm
Size 350 mm
Facing, flange RAISED FACE
HX-ORIFICE FLANGE
type: ORIFICE FLANGE
Sealing Face: RF
SIZE: 8 inch
CLASS: 600
Material: A105
per ASME B16.36
HX-BLIND FLANGE
FLANGE,PIPE:
Type: Blind
Face: RTJ (R-49)
Size: 8"
Rating: 900 LB,SCH-160
Material: CARBON STEEL
Specification: A-105N,ANSI B16.5
Compliance with NACE Std MR 01-75
Type: Blind
Face: RTJ (R-49)
Size: 8"
Rating: 900 LB,SCH-160
Material: CARBON STEEL
Specification: A-105N,ANSI B16.5
Compliance with NACE Std MR 01-75
HX-Flange-001
General Spare Parts
Part name*: WELD NECK FLANGE
Material: LOW TEMPERATURE CARBON STEEL (ASTM A350 GRADE LF2 CLASS 1)
Equipment name*: PIPELINE FLANGES
Equipment model number*: ASME B16.5
Part name*: WELD NECK FLANGE
Material: LOW TEMPERATURE CARBON STEEL (ASTM A350 GRADE LF2 CLASS 1)
Equipment name*: PIPELINE FLANGES
Equipment model number*: ASME B16.5
BRIDE WN SCH 40 5" WN-RF 300# A 105 N ASME B 16.5
BRIDE WN SCH 40 5" WN-RF 300# A 105 N ASME B 16.5
