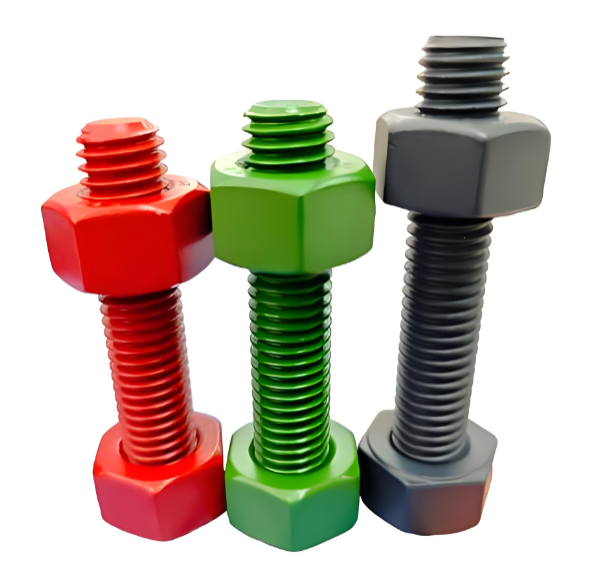

SB2N,L7M,7M,11UN,5/8in,90mm
Key Specifications / Features
Model No.: HX-STUD Hits: 5
Stud bolts with nuts
Mat spec, stud bolt(s) ASTM A320 GRADE L7M
Mat spec, nut(s) ASTM A194 GRADE 7M
Coating TBA
Thread class symbol, stud bolt 2B
Type of thread UNIFIED COARSE THREAD 11
Type, nut HEXAGONAL
Number, nuts per stud bolt 2
Inspection, certif ISO 10474 -3.1B
Length 90 mm
Size 5/8 in
Request a quote
Mat spec, stud bolt(s) ASTM A320 GRADE L7M
Mat spec, nut(s) ASTM A194 GRADE 7M
Coating TBA
Thread class symbol, stud bolt 2B
Type of thread UNIFIED COARSE THREAD 11
Type, nut HEXAGONAL
Number, nuts per stud bolt 2
Inspection, certif ISO 10474 -3.1B
Length 90 mm
Size 5/8 in
Tags
Detail Information
Type: Stud bolt with nuts, hex head bolt nuts
Size:3/8”-3” (M6-M80)
Standard:ASME ANSI B18.31.2 / ANSI B18.2.2
Material: Bolt (ASTM A193 B7,B8,B8M,B6,A320 L7
Nut (A194 2H,Gr.4,Gr.7,Gr.8,Gr.8M,Gr.16)
Length: To be confirmed
Type of Nut: Hex nuts, hex heavy nuts, tommy bar hole buts, locked nuts
Connection method: Screwed/Threaded
Packing: Wooden Case
Delivery Time: Within 15 days.
