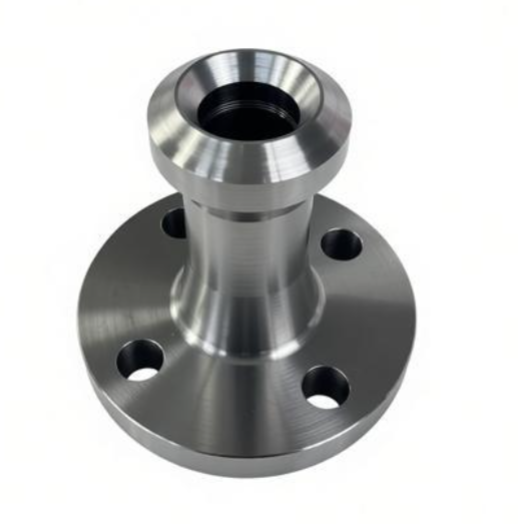

FLGD OUTLET,PIP,3/4",14X36",CL150,A105
Key Specifications / Features
Model No.: HX-OLET Hits: 3
TYPE : BRANCH,FLANGED
OUTLET SIZE : 20 MM (3/4 IN)
RUN SIZE : 350 X 900 MM (14 X 36 IN)
MATERIAL : CARBON STEEL
MATERIAL STANDARD : ASTM A105
FLANGE DESIGN STANDARD : ANSI B16.5
PIPE SCHEDULE : 160
PRESSURE CLASS : ANSI CLASS 150
DESIGN STANDARD : ANSI B36.10
FLANGE FACE : RAISED FLANGE FACE
Request a quote
OUTLET SIZE : 20 MM (3/4 IN)
RUN SIZE : 350 X 900 MM (14 X 36 IN)
MATERIAL : CARBON STEEL
MATERIAL STANDARD : ASTM A105
FLANGE DESIGN STANDARD : ANSI B16.5
PIPE SCHEDULE : 160
PRESSURE CLASS : ANSI CLASS 150
DESIGN STANDARD : ANSI B36.10
FLANGE FACE : RAISED FLANGE FACE
Tags
Detail Information
Product Type: Coupling, Nipple, Weldolet, Tee, Elbow
Manufacture Method: forging
Size: 1/2”-56”(DN15-DN1400) * SCH10-SCH XXS
Connecting type: BW,SW,NPT,BSPT
Threads type: NPT,FNPT,MNPT, BSPT
Standard: ASME B16.11,B16.25,MSS SP.75,SP9
Material: ASTM A105 ASTM A182
Surface treatment: Oiled , Galvanized
Marking: As per standard & customer's requirements
Packing: Plywood box for small size, and plywood pallet for big size
