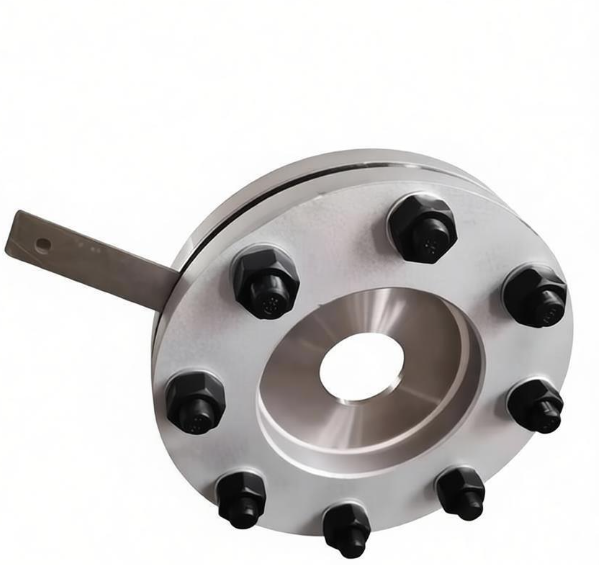

FLG OR,LF2, RF,CL300,40,8in,NSR
Key Specifications / Features
Model No.: HX-FLANGE Hits: 5
Orifice flange sets
Design spec ASME B16.36
Type of flange WELDING NECK
Mat LOW TEMPERATURE CARBON
Mat spec, flanges/fittings ASTM A350 GRADE LF2
Facing, flange RAISED FACE
Finish, flange facing RA: 125 TO 250 μin
Service NON-SOUR
Pressure designation CL 300
Thickness, hub 8.18
Schedule number, hub S-40
Size 200
Request a quote
Design spec ASME B16.36
Type of flange WELDING NECK
Mat LOW TEMPERATURE CARBON
Mat spec, flanges/fittings ASTM A350 GRADE LF2
Facing, flange RAISED FACE
Finish, flange facing RA: 125 TO 250 μin
Service NON-SOUR
Pressure designation CL 300
Thickness, hub 8.18
Schedule number, hub S-40
Size 200
Tags
Detail Information
Type: Weld Neck, Ring Joint ,Slip On, Blind, Lap Joint,Blind, Spectacle-Blind
Standard: ASME B16.5 ASME B16.47， ASME B16.48
Material: A105. A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH,A182, F304/304L, F316/316L,A182 A182 F12,F11,F22,F5,F9,F91etc.
Manufacturing Method: Forged
Pressure: Class150-Class2500
Surface: Oiled , Painted
Third Party Inspection: SGS BV etc.
Packing: By Wooden Case or Pallet
Payment Term: At buyer’s option
